Signed Links

Harlyy supports signed survey links using the sig query parameter, similar to how other query parameters can be used to create more dynamic behaviour. Signed links allow you to verify that a survey link was generated by your system, has not been tampered with and only gets used once.

This is commonly used by POS integrations and other backend systems that need to securely generate one-time, customer-specific survey links.

How Signed Links Work

A signed link contains:

1. A Base64-encoded JSON payload
2. An HMAC-SHA256 signature generated using your survey secret

The format is:

?sig=<base64_payload>.<signature>

For example:

https://survey.harlyy.com/<business_id>/<survey_id>?sig=<payload>.<signature>

The payload is signed using the survey's secret key. Harlyy validates the signature before allowing the survey submission flow to continue.

Payload Structure

The payload must be a JSON object encoded as Base64.

Supported fields

Field	Type	Required	Description
nonce	string	Yes	A unique identifier for the generated link.
exp	number	No	Expiration timestamp in milliseconds since Unix epoch.

Example payload before encoding:

{
  "nonce": "abc123",
  "exp": 1789500000000
}

Survey Secret and Signature Settings

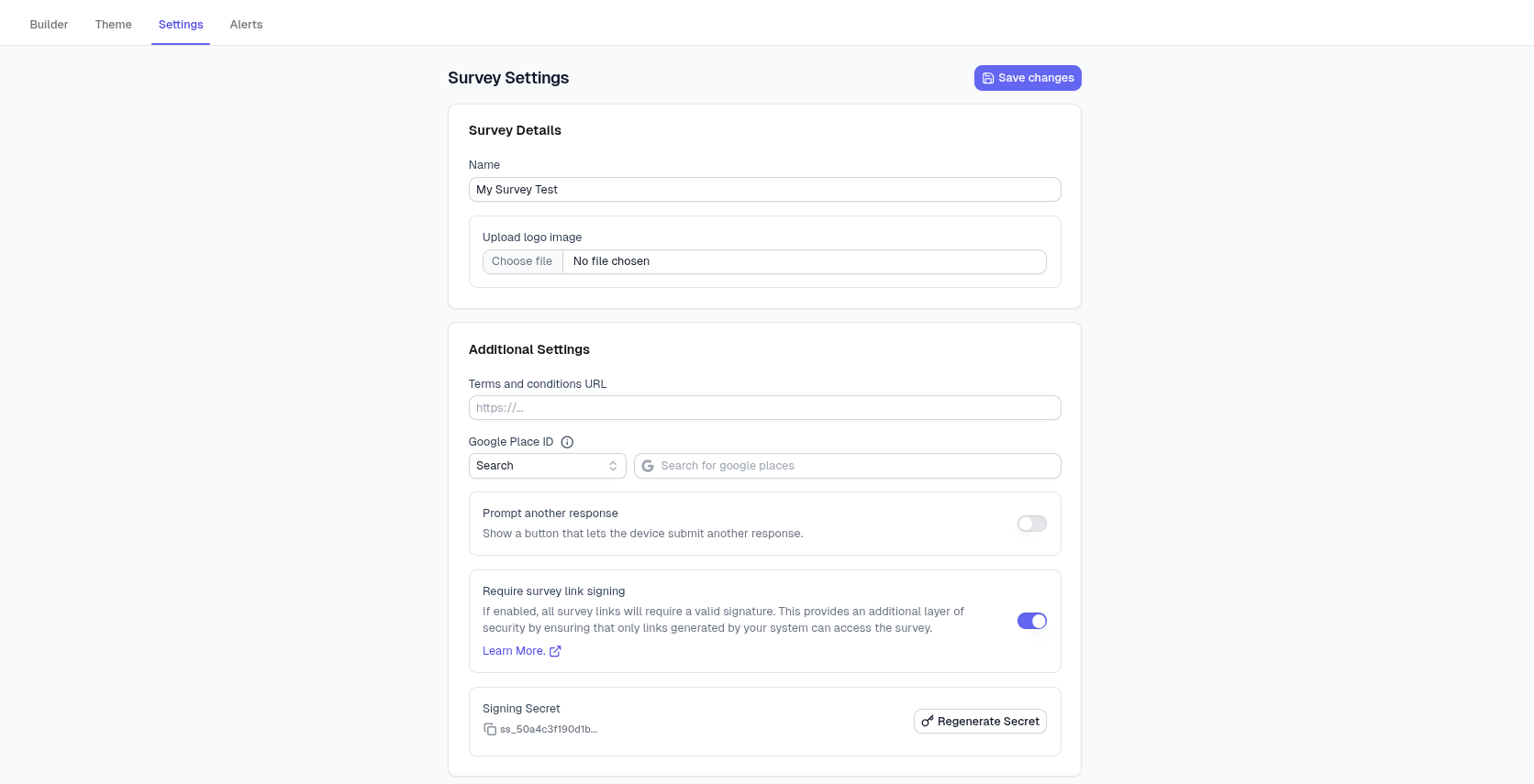

To manage your secret and settings, navigate to the survey builder, then click "Settings". Underneath "Additional Settings" you can view or regenerate your survey's signing secret, and you can enable the "require survey link signing" option.

Example Code

The following examples demonstrate how to generate a signed HMAC-SHA256 link:

NodeJS

NodeJS Example

import crypto from 'crypto';

function createSignedPayload(nonce, secret, expiresAt) {
    const payloadObj = {
        nonce,
    };

    if (expiresAt instanceof Date) {
        payloadObj.exp = expiresAt.getTime();
    }

    // Convert JSON -> string
    const json = JSON.stringify(payloadObj);

    // Convert to Base64
    const payloadBase64 = Buffer.from(json, 'utf8').toString('base64');

    // Create HMAC SHA256 signature
    const signature = crypto
        .createHmac('sha256', secret)
        .update(payloadBase64, 'utf8')
        .digest('base64');

    return encodeURIComponent(`${payloadBase64}.${signature}`);
}

// Example usage
const sig = createSignedPayload(
    'abc',
    'my-super-secret-key',
    Date.now() + 30 * 60 * 60 * 1000
);

console.log(sig);

Python

Python Example

import base64
import hashlib
import hmac
import json
import time
import urllib.parse

def create_signed_payload(nonce: str, secret: str, expires_at: int | None = None) -> str:
    payload = {
        "nonce": nonce,
    }

    if expires_at is not None:
        payload["exp"] = expires_at

    # Convert JSON -> string
    json_payload = json.dumps(payload, separators=(",", ":"))

    # Convert to Base64
    payload_base64 = base64.b64encode(json_payload.encode("utf-8")).decode("utf-8")

    # Create HMAC SHA256 signature
    signature = base64.b64encode(
        hmac.new(
            secret.encode("utf-8"),
            payload_base64.encode("utf-8"),
            hashlib.sha256,
        ).digest()
    ).decode("utf-8")

    return urllib.parse.quote(f"{payload_base64}.{signature}")

# Example usage

sig = create_signed_payload(
    "abc",
    "my-super-secret-key",
    int(time.time() _ 1000) + 30 _ 60 _ 60 _ 1000,
)

print(sig)

PHP

PHP Example

<?php

function createSignedPayload(string $nonce, string $secret, ?int $expiresAt = null): string
{
    $payload = [
        'nonce' => $nonce,
    ];

    if ($expiresAt !== null) {
        $payload['exp'] = $expiresAt;
    }

    // Convert JSON -> string
    $json = json_encode($payload);

    // Convert to Base64
    $payloadBase64 = base64_encode($json);

    // Create HMAC SHA256 signature
    $signature = base64_encode(
        hash_hmac('sha256', $payloadBase64, $secret, true)
    );

    return urlencode($payloadBase64 . '.' . $signature);
}

// Example usage
$sig = createSignedPayload(
    'abc',
    'my-super-secret-key',
    (int)(microtime(true) _ 1000) + (30 _ 60 _ 60 _ 1000)
);

echo $sig;

Security Recommendations

warning

• Never expose your survey secret in frontend applications or mobile apps.
• Signed links should always be generated server-side.
• Use a unique nonce value for every generated link.
• Use expiration timestamps (exp) whenever possible, with an appropriate expiry time.
